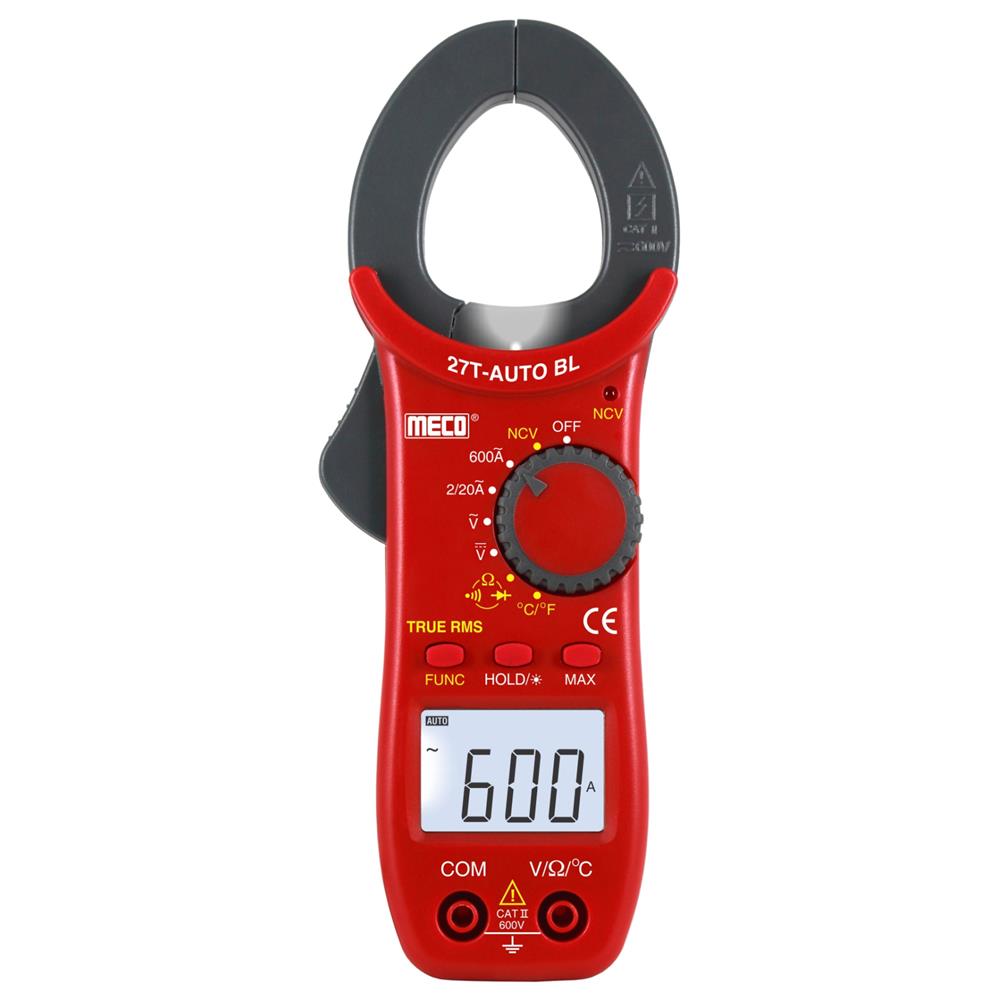

27T – AUTO BL Digital clampmeter

600A AC TRMS Auto Ranging, 3½ Digit, 2000 Counts, Temperature, Data Hold, Max, Backlight, Torchlight, NCV (LED, Buzzer & EF Strength), APO

Ranges

AC Current – 2A, 20A, 200A, 600A (Auto Ranging)

Accuracy – ±(3%rdg+5dgt) on 2A

±(2%rdg+3dgt) on 20A

±(2%rdg+5dgt) on 200A & 600A

AC Response – 40Hz ~ 1KHz

Overload – 600A AC max. for 1 min

AC Voltage – 2V, 20V, 200V, 600V (Auto Ranging)

Accuracy – ±(1.2%rdg+3dgt)

AC Response – 40Hz ~ 1KHz

DC Voltage – 200mV, 2V, 20V, 200V, 600V (Auto Ranging)

Accuracy – ±(0.8%rdg+3dgt)

Temperature -20° C to 750° C / -4° F to 1382° F

Accuracy – ±(3%rdg+5dgt)

Resistance – 200V, 2kV, 20KV, 200kV, 2MV, 20M V(Auto Ranging)

Accuracy – ±(1.2%rdg+3dgt)

Audible Continuity – 40V(approx.)

Diode Test – 1.0 ±0.6mA (approx.)

Power – Two 1.5V ‘AAA’ Battery

Battery Life – 200 Hours Typical

Low Battery is indicated

Dimension – 185 x 65 x 28 mm (approx.)

Weight – 170gms Including Battery (approx.)

Jaw Opening – Cable Dia .25mm (max.)

Safety Standard – CAT II 600V

Accessories – One Pair of Test Leads, Instruction Manual, Carrying Case, Battery (installed) K Type Thermocouple (upto 2600 C)

Dimension – 185 x 65 x 28 mm (approx.)

Weight – 170gms Including Battery (approx.)
