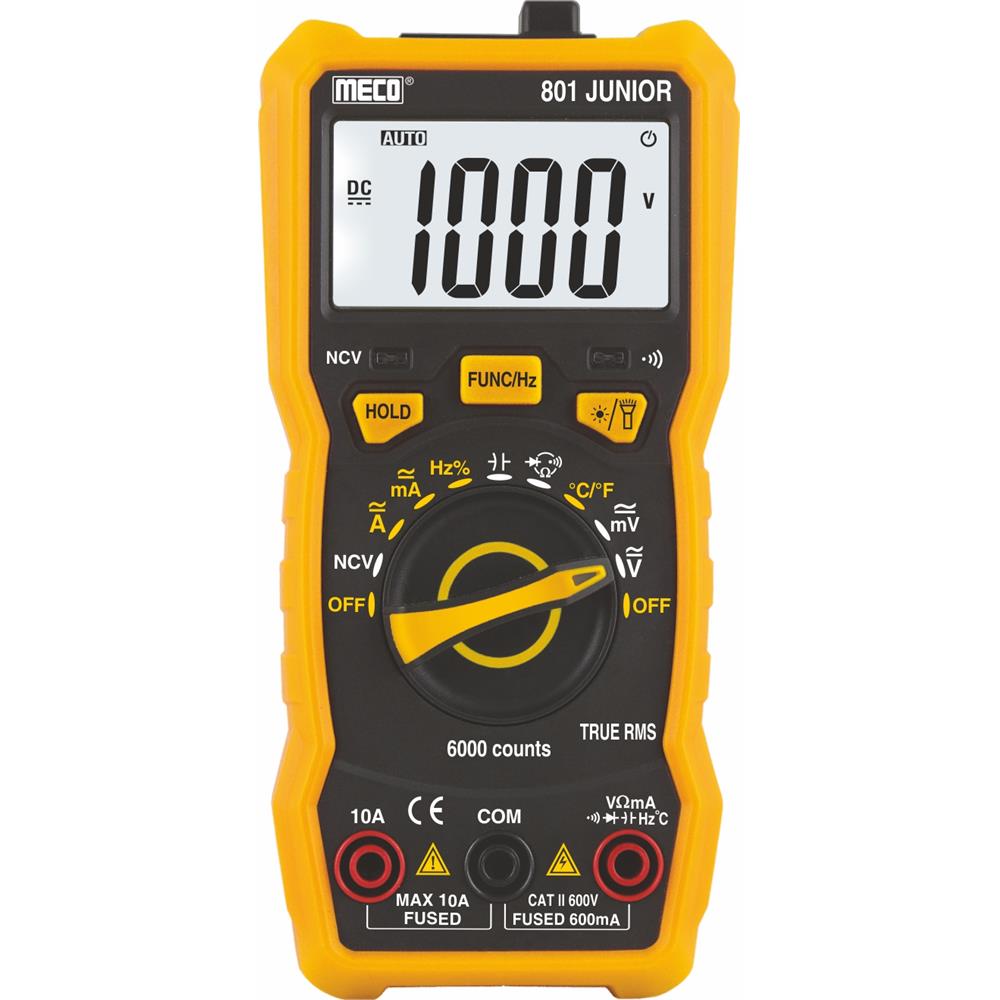

801 JUNIOR DIGITAL MULTIMETER

Ranges

DC Voltage – 60 / 600mV / 6 / 60 / 600 / 1000V

Accuracy – ± (0.8% rdg + 5 dgt)

AC Voltage – 60 / 600mV / 6 / 60 / 600 / 750V

Accuracy – ± (1.0% rdg + 10 dgt) on 60 / 600mV

± (1.0% rdg + 4 dgt) on all other ranges

AC Response – 40Hz ~ 1KHz

DC Current – 60 / 600mA / 6 / 10A

Accuracy – ± (1.2% rdg + 4 dgt) on 60 / 600mA

± (3.0% rdg+ 2 dgt) on 6A

±(5.0% rdg +10 dgt) on 10A

AC Current – 60 / 600mA / 6 / 10A

Accuracy – ± (1.5% rdg + 3 dgt) on 60 / 600mA

± (3.0% rdg + 5 dgt) on 6A

±(5.0% rdg +10 dgt) on 10A

AC Response – 40Hz ~ 1KHz

Resistance – 600Ω to 60MΩ

Accuracy – ± (0.8% rdg + 5 dgt)

Capacitance – 60.00 to 100.0Mf

Accuracy – ± (3.0% rdg + 5 dgt) on all ranges except

± (5.0% rdg + 20 dgt) on 60.00 nF

± (5.0% rdg + 5 dgt) on 60.00 / 100.0 mF

Frequency – 60.00 to 10.00MHz

Sensitivity – 200mV to 10V

AC Accuracy – ± (1.5% rdg + 5 dgt)

Duty Cycle – 1% ~ 99%

Accuracy – ± (1.5% rdg + 5 dgt)

Temperature -20°C ~ 1000°C / -4°F ~ 1832°F

Accuracy – ± (1.0% rdg + 3 dgt)

Measuring – CAT II 600V

SP Function – Diode Test, Data Hold, Continuity Test / NCV Test (LED, Buzzer & EF Strength)

Power – Three 1.5V ‘AAA’ Battery

Low Battery is indicated

Battery Life – 200 hours typical

Accessories – One Pair of Test Leads, Spare Fuse (0.6A/250V) x 2, Holster, Battery (installed), Instruction Manual & K Type Thermocouple (upto 260°C)

Dimensions – 147 x 71 x 45mm (approx.)

Weight – 230gms Including Battery (approx.)
