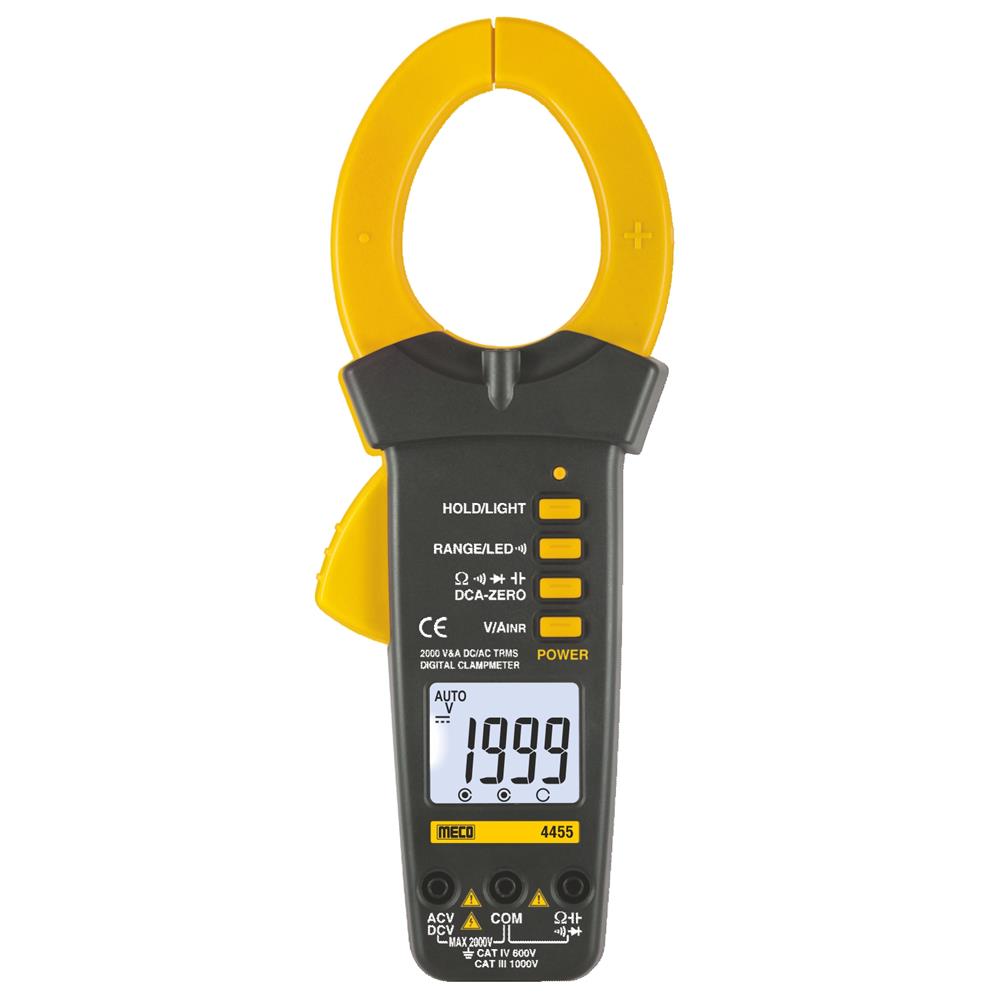

2000A DC / 2000A AC (TRMS) 3½ Digit, 1999 Counts, Auto & Manual Ranging, Inrush Current, Backlight, Torch light, DATA HOLD, APO
AC Current – 20A, 200A, 2000A (Auto & Manual Ranging)
Accuracy – ±(1.90%rdg + 10dgt)
AC Response – AC Conversion Type : TRUE RMS responding, Calibrated readings consistent with sinusoidal waveform RMS.
Frequency Range – 50 ~ 60Hz
Overload – 2000A DC/AC RMS max. for 1 min.
AC Voltages – 2V, 20V, 200V, 2000V (Auto & Manual Ranging)
Accuracy – ±(0.80% rdg + 10 dgts) 2V ±(0.80% rdg + 5 dgts) 20V, 200V ±(2.0% rdg + 5 dgts) 2000V
AC Response Frequency – 10Hz ~ 1KHz (200V : 10Hz to 400Hz)
Display – TRUE RMS (Sinusoidal waveform RMS Calibration
DC Current – 20A, 200A, 2000A (Auto & Manual Ranging)
Accuracy – ±(1.90%rdg+10dgts)
Overload – 2000 A DC/AC RMS max. for 1 min.
DC Voltage – 2V, 20V, 200V, 2000V (Auto & Manual Ranging)
Accuracy – ±(0.50%rdg + 5dgts) on all rages except
±(2.00% rdg + 5dgts) on 2000V
Resistance – 200 , 2k , 20k , 200k , VV V V 2M , 20M V V (Auto & Manual Ranging)
Accuracy – ±(1.00%rdg + 5dgt) on 200V
±(0.80%rdg + 5dgt) on 2k ~2M V V
±(1.50%rdg + 5dgt) on 20MV
Capacitance – 20nF, 200nF, F, 20 F, 2m m 200 F, 2000 F (Auto Ranging)
Accuracy – ±(3%rdg + 10dgt) on all ranges except
±(5%rdg + 10dgt) on 2000 Fm
Sp. Function – Audible Continuity, Diode Test
Power – One 9V Battery
Battery Life – 150 hours (typical)
Low Battery is indicated.
Protection – 220VDC or AC RMS overload protection in Capacitance, Diode, Ohms, Continuity
Jaw Opening – Cable Dia 55mm max.
Accessories – One Pair of Test Leads, Carrying Case, Battery (installed) & Inst. Manual
Dimensions – 270 x 100 x 46 mm (approx.)
Weight – 460gms Including Battery (approx.)
